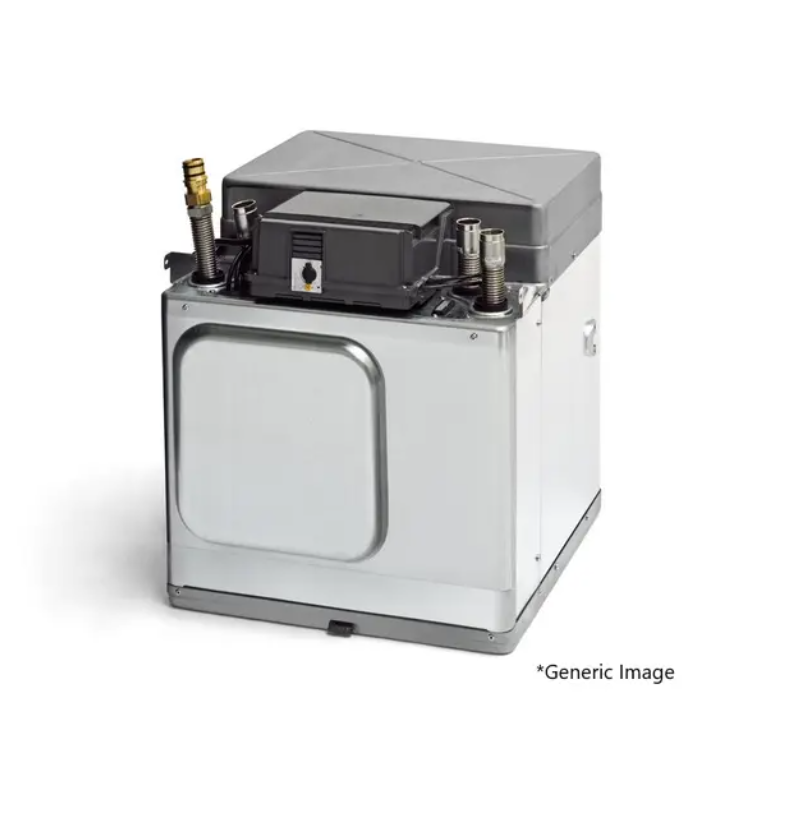

NIBE Cooling Module CMR 45-15 - 067122

NIBE Cooling Module CMR 45-15 - 067122

• Width: 650mm
• Length: 650mm
• Height: 750mm

Included Components:

• REFRIDGERATION PIPE-CU: 1
• CSK SPECIAL SCREW-DOGP: 6

• COMPRESSOR SCREW LOCKTITE: 4
• SAFETY CLIPS: 4
• COMPRESSOR: 1

• COMPRESSOR PLATE: 1

• PLATE CONSOLE EXCHANGER: 2

• EVAPORATOR COMPLETE: 1

• CIRK PUMP ASSY: 1
• CONDENSOR COMPLETE: 1

• LIQUID LINE COMPLETE: 1
• INSULATION: 1
• BITUMEN INSULATION: 1
• CIRCULATION PUMP: 1
• HEATEX.INSUL FRONT: 1
• HEATEX.INSUL BACK: 2
• HEATEX.INSUL WRAP: 2

• HEATEX.INSUL BACK: 2

• HEATEX.INSUL FRONT: 1
• CU TUBE: 1
• SVEP S/F1XXX: 1
• STATIV F1145/12: 1
• RUBBER SHOCK-ABSORBER: 4
• CONE, SCHRADER VALVE 1/4": 2
• SOUNDISOLATION: 1
• VIBRATIONSDÄMPA: 4
• INSULATING TUBE: 4
• DIFFUSIONS BARR: 6

• PCBA SENSOR CARD: 1
• ELECTRICAL ASSY: 1
• CABLE TIE 150x3.5: 9

• CRANKCASE HEATER 43W: 1
• TERMINAL BLOCK: 1

• TEMPERATURE SENSOR KIT: 1
• TOP REFR. UNIT: 1
• 1/4 FLARE CAP NUT: 2
• SKYDDSPROPP: 4

• CABLE TIE 198x3.5: 11
• CU-TUBE REFRIDGE. TUBE: 1

• PAN SCREW-WOOD-TIP: 8
• WASHER PLASTICS: 6
• BLIND RIVET Ø4.8X10 STAINLESS: 20
• SKRUV: 3
• PAN SPECIAL SCREW-FT: 2
• PAN SCREW: 2
• PAN SCREW-FLG-PT: 2
• HEX SPECIAL NUT WASHER: 6
• PAN SPECIAL SCREW-FT: 2
• LOCK WASHER: 4
• HEAT ZINK: 0.053
• THERMAL CONDUCTION PASTE: 0.012
• INSULATING TAPE: 0.2
• REFRIDGERATION UNIT: 1
• REFRIDGERATION MODULE 45-15: 1
• ELECTR. ASSY COMPRESSOR: 1
• CLIP 28: 4
• CLIP: 1
• FLEX PIPE WITH GIVING: 1
• FLEXIBLE HOSE WITH SENSOR: 1

• SENSOR CLIP "EMMY-SENSORS": 2
• STRIP WITH HOOD: 5.3
• SEALING RING ANTI-FRICTION: 8

• HOT MELT ADHESIVE: 0.038
• Refrigerant R407C: 2000

• CARDHOLDER: 1
• TUBEHOLDER: 2

• CARDSEAL: 1

• Plastic clips: 1
• FRONT COVER: 1
• CORNER SUPPORT: 4
• BOTTOM REFRIDG. UNIT: 1
• ADDITIVE MATERIAL: 1
• FRAME REFR. MODULE: 1

• ADDITIONAL PACK SET CMR: 1
• CABLE TIE 230x12.7: 2

Compatible with models below:

• NIBE F1145-15 - 065092
• NIBE F1145-15 EXP - 065098
• NIBE F1145-15 EM - 065118
• NIBE F1145-15 - 665207
• NIBE F1145-15 EXP - 665257
• NIBE F1145-15 DE - 665277
• JÄMÄ STAR-15 - 065188
• METROSAVER UB-15 - 065198
• JÄMÄ STAR 15 - 665677
• METROSAVER UB-15KW - 665697

Unsure if suitable for your needs, get in touch and we will be happy to help!
